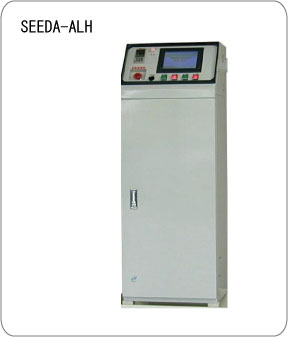

SEEDA-ALH
| -CONCENTRATION MEASURING & CONTRLLING PART- | |
|---|---|
| Control system | By PLC |
| Measuring method | Special neutralization titration method |
| Measuring range | Free Hydrochloric Acid 0-40% Aluminum Chloride 0-40% |
| Shortest measuring cycle | 10 min (for measuring 2 chemicals) |
| Guarantee accuracy | Aluminum Chloride Less than +/- 0.10% of measured value |
| Number of production line which the equipment can control | Up to 3 lines |
| Data display | Color LCD (cocentration9) |
| Panel dimensions | 450W×425D×1400H |
| Weight | Approx100Kg |
| -REAGENTS STORAGE PART- | |
|---|---|
| Articles in storage | Reagents for measuring |
| Storage system | Optical monitoring system |
| Outer dimensions | 640W×400D×800H |
| Weight | Approx50Kg |
Please, inquire us if your measuring range does exceed the above mentioned range.
