SEEDA-AL
| -CONCENTRATION MEASURING CONTROLLING PART- | ||
|---|---|---|
 |
Control method | CPU Control |
| Measuring method | Special neutralization titration method | |
| Measuring range | Nitric Acid 0-20% Acetic Acid 0 - 40% Phosphoric Acid 0-80% |
|
| Shortest measuring cycle | 13 min (for measuring 3 acid) | |
| Measuring accuracy | Nitric Acid Less than +/-0.1% of measured valu Acetic Acid Less than +/-0.3% of measured value Phosphoric Acid Less than +/-0.4% of measure value |
|
| Number of production line which the equipment can control | Up to 3 lines | |
| Data display | Color LCD (concentration) | |
| Color LCD (concentration) | 4-20mA(3 points) | |
| Cabinet dimensions | 450W×425D×1400H | |
| Weight | Appro×100kg | |

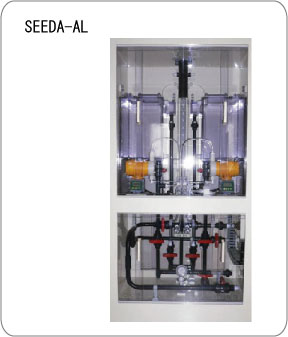

| -CHEMICAL LIQUID METERING & FEEDING PART- | ||
|---|---|---|
 |
Pump control system | Inverter control |
| Metering pump type | Diaphragm type | |
| Metering pump material | PTFE resin | |
| Metering rangep | 0～300ml/min | |
| Sample liquid circulation pump | Magnet pump | |
| Circulation pump material | PTFE resin (liquid contact part) | |
| Number equipped with measurement pump | ２ | |
| Number of circulation pump | １ | |
| Outer dimensions | 800W×600D×1600H | |
| Weight | Approx100Kg | |

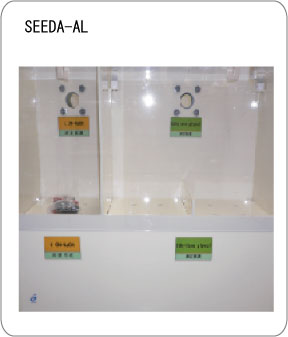

| -REAGENTS STORAGE PART- | ||
|---|---|---|
 |
Articles in storage | Reagents for measuring |
| Storage system | Optical monitoring system | |
| Outer dimensions | 670W×350D×800H | |
| Weight | Approx40Kg | |
Please, inquire us if your measuring range does exceed the above mentioned range.
